Create a Counter App with Hot Design^®

This tutorial will guide you through using Hot Design to create a simple counter application. The application will include:

An Image at the top.
A TextBox below the image, where you can set the step size for incrementing the counter.
A TextBlock below the TextBox, displaying the current counter value.
A Button at the bottom labeled "Increment Counter by Step Size", which updates the counter value based on the step size entered.

Counter App Preview

Before You Begin

This tutorial uses the XAML + MVUX variant. You can switch to MVVM by using this version if desired. Explore other tutorial variants here.

Make sure:

Your environment is set up
You're signed in with your Uno Platform account (licensing steps)
You're using Uno.Sdk 5.5 or higher and replaced EnableHotReload() with UseStudio() (migration guide)
You check Hot Reload platform support

Note

Hot Design works independently of architectural patterns but this guide uses MVUX.

Important

To start using Hot Design, ensure you are signed in with your Uno Platform account. Follow these instructions to register and sign in.

Hot Design is available on all platforms. See the list of current known issues.
Hot Design does not support C# Markup and is only available with XAML and .NET 9.
Hot Design is not available for the WinAppSDK target framework (netX.0-windowsX.X.X) at this time.
Hot Design relies on Hot Reload for updates, so be sure to check the current support for your OS, IDE, and target platforms before testing.
Your input matters! Share your thoughts and help us improve Hot Design. Find out how to provide feedback here.

Creating the Counter Application

Launch Visual Studio and click on Create new project on the Start Window. Alternatively, if you're already in Visual Studio, click New, Project from the File menu.
Type "Uno Platform" in the search box
Click Uno Platform App, then Next
Name the project Counter and click Create At this point you'll enter the Uno Platform Template Wizard, giving you options to customize the generated application. For this tutorial, we're only going to configure the presentation framework.
Select Blank in Presets selection
Select the Presentation tab and choose MVUX
Click Create to complete the wizard The template will create a solution with a single cross-platform project, named Counter, ready to run.

Launch Rider and click on New Solution on the Start Window
From the left menu, under the Uno Platform section, select Uno Platform App At this point, you'll see options for creating a new Uno app, allowing you to customize the generated application. For this tutorial, we will only configure the presentation framework.
Name the project Counter
Select Blank in Presets selection
Select the Presentation tab and choose MVUX
Click Create to complete the creation The template will create a solution with a single cross-platform project, named Counter, ready to run.

Launch The Live Wizard by clicking here
Name the project Counter and click Start
Select Blank in Presets selection
Select the Presentation tab and choose MVUX
Click Create to complete the wizard
Copy the dotnet new command and run it from a terminal where you want your solution to be located.
This will create a new folder called Counter containing the new application.
Next, open the project using Visual Studio Code. In the terminal type the following:
```
code ./Counter
```
Visual Studio Code might ask to restore the NuGet packages. Allow it to restore them if asked.
Once the solution has been loaded, in the status bar at the bottom left of VS Code, Counter.sln is selected by default. Select Counter.csproj to load the project instead.

Install the latest Uno Platform dotnet new templates by following these instructions.

From the command line, run the following command:

dotnet new unoapp -preset blank -presentation mvux -o Counter

This will create a new folder called Counter containing the new application.

Assets

First, we need to add the image file to the application. Download this SVG image (Open this link, right-click on the SVG image and select "Save as") and add it to the Assets folder. Once added, rebuild the application to ensure the image is included in the application package.

Note

If you're working in Visual Studio, select the newly added logo.svg file in the Solution Explorer, open the Properties panel, and ensure the Build Action property is set to UnoImage. For other IDEs, no further action is required as the template automatically sets the Build Action to UnoImage for all files in the Assets folder.

For more information on Uno.Resizetizer functionalities, visit Get Started with Uno.Resizetizer.

Run the app

Hot Design relies on Hot Reload for updates, so be sure to check the current support for your OS, IDE, and target platforms.

Before you run the application, switch the target platform to Desktop (net9.0-desktop) to enable Hot Design during debugging. For more information on how to switch the target platform, visit the documentation page for your IDE:

Visual Studio
Rider
VS Code

Important

In the status bar at the bottom left of VS Code, ensure Counter.csproj is selected (by default Counter.sln is selected).

Now, let's run the app.

Enter Hot Design Mode

To start editing the UI, enter Hot Design by clicking the flame button in the diagnostics overlay that appears over your app.

Note

If you don't see the Hot Design flame button, ensure that you are signed in with your Uno Platform Account and using the latest stable 5.5 Uno.Sdk version or higher.

Hot Design flame button to enter design mode

Design the UI

When making changes via Hot Design, the XAML will automatically update to reflect your edits. Similarly, any changes made directly to the XAML will be reflected in Hot Design.

Remove Existing Elements

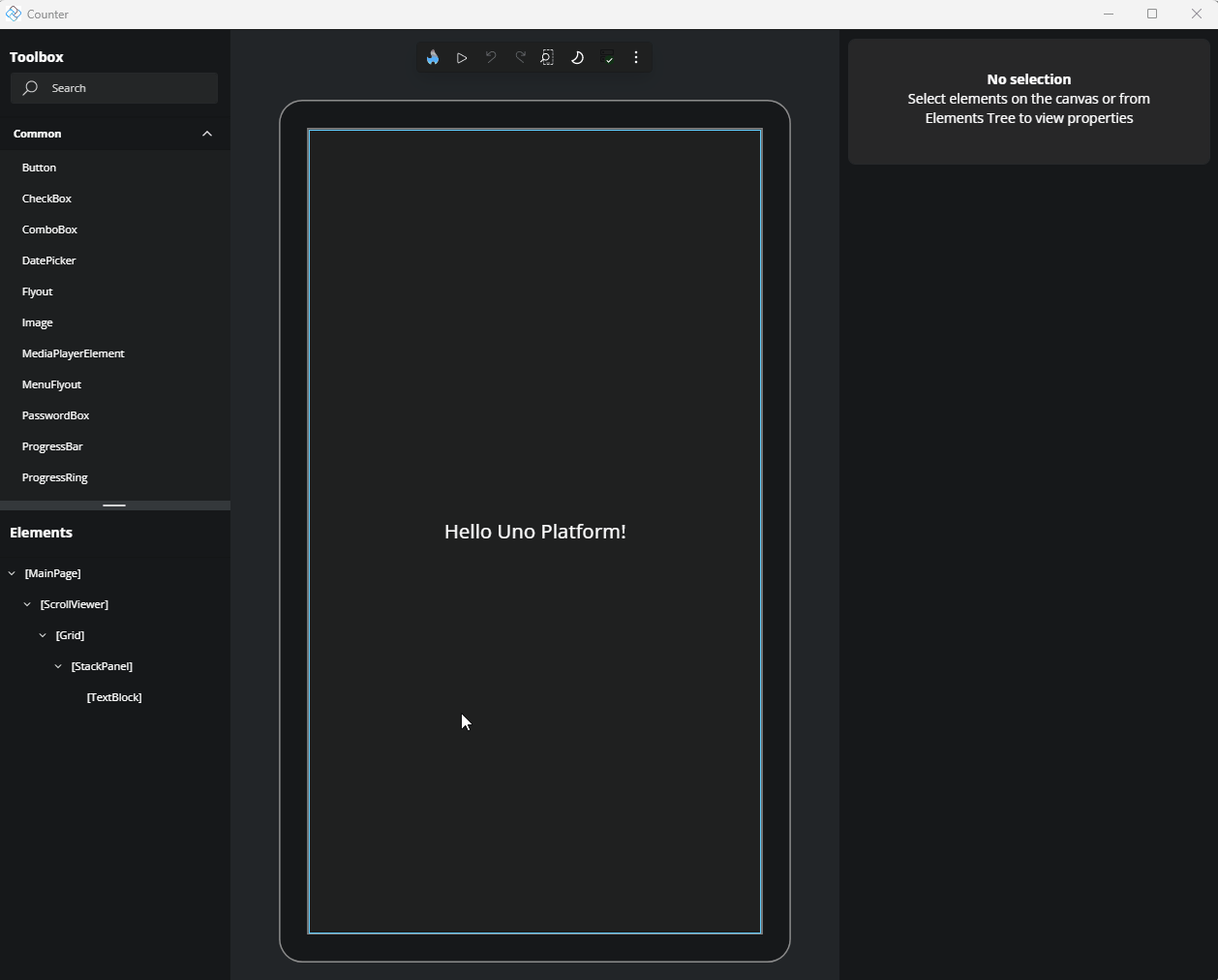

Remove the existing StackPanel. In the Elements panel, select the StackPanel, right-click, and choose Delete StackPanel.

Add a `StackPanel`

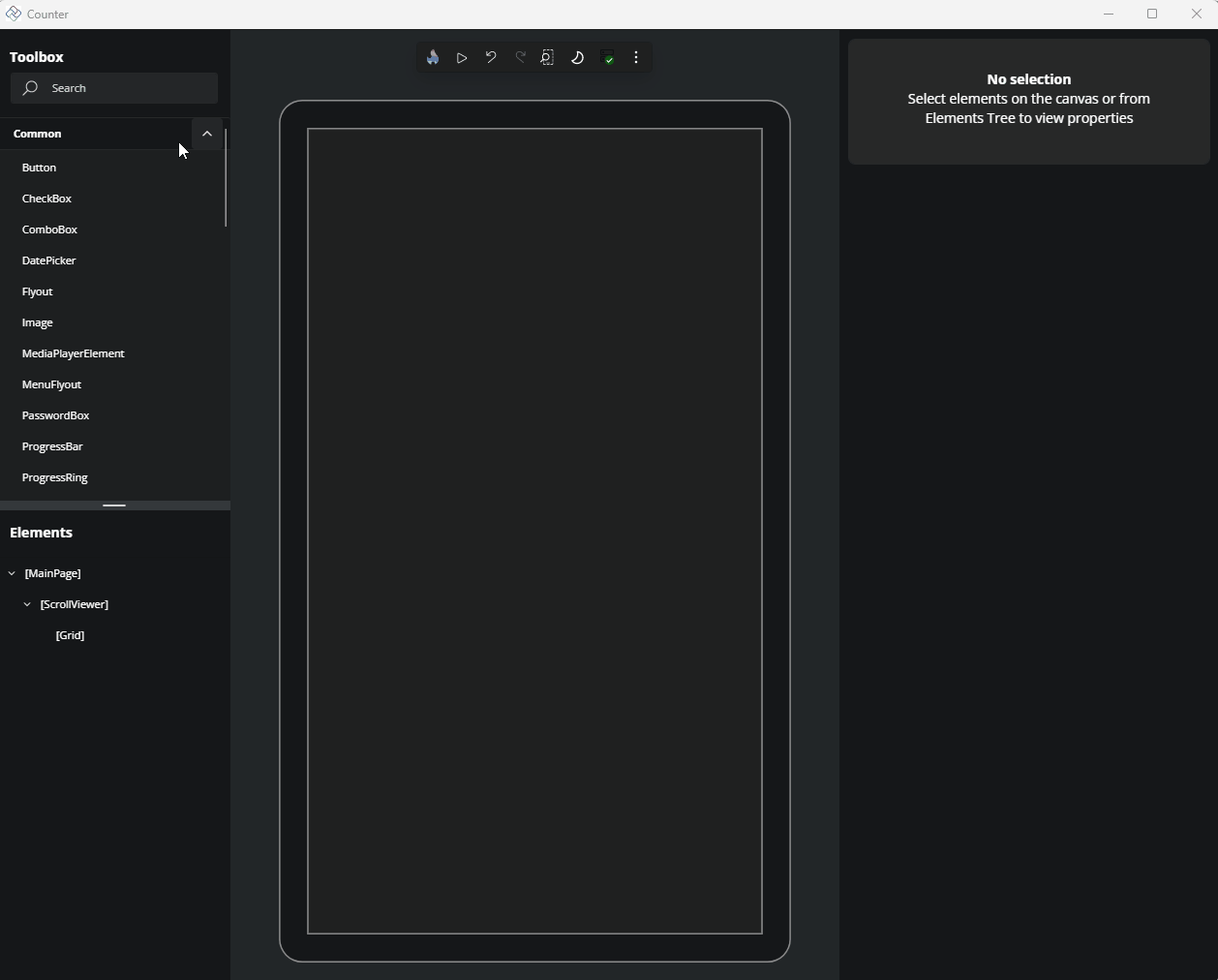

Let's add the container to hold our elements by adding a StackPanel. In the Toolbox panel, search for "StackPanel". Once it appears in the search results, drag it onto the Canvas.

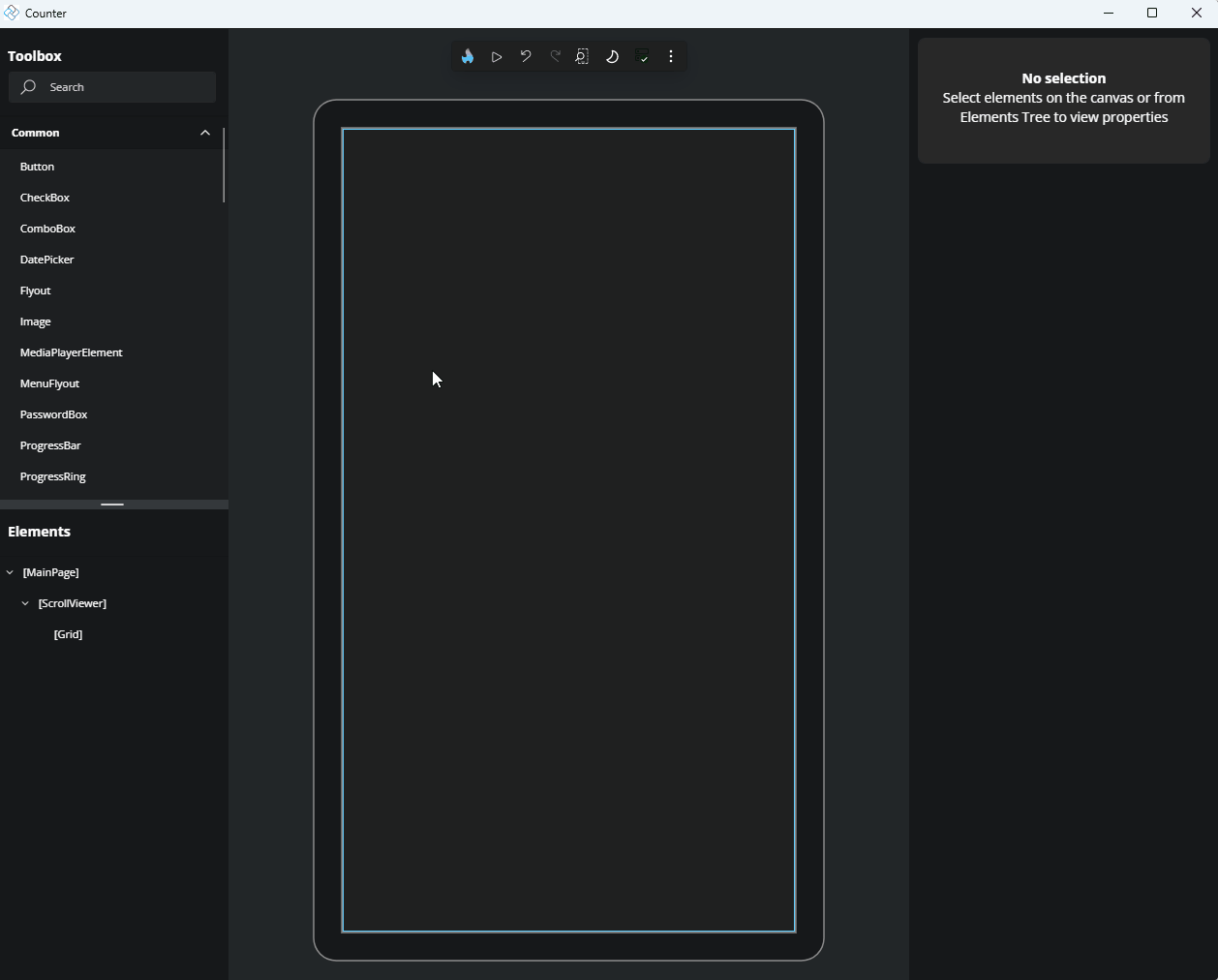

Alternatively, you can drag the element from the Toolbox and drop it onto the Elements panel.

Another way would be to select the existing element in the Elements panel where you want to add a new item, then double-click the desired item in the Toolbox panel to add it as a child of the target.

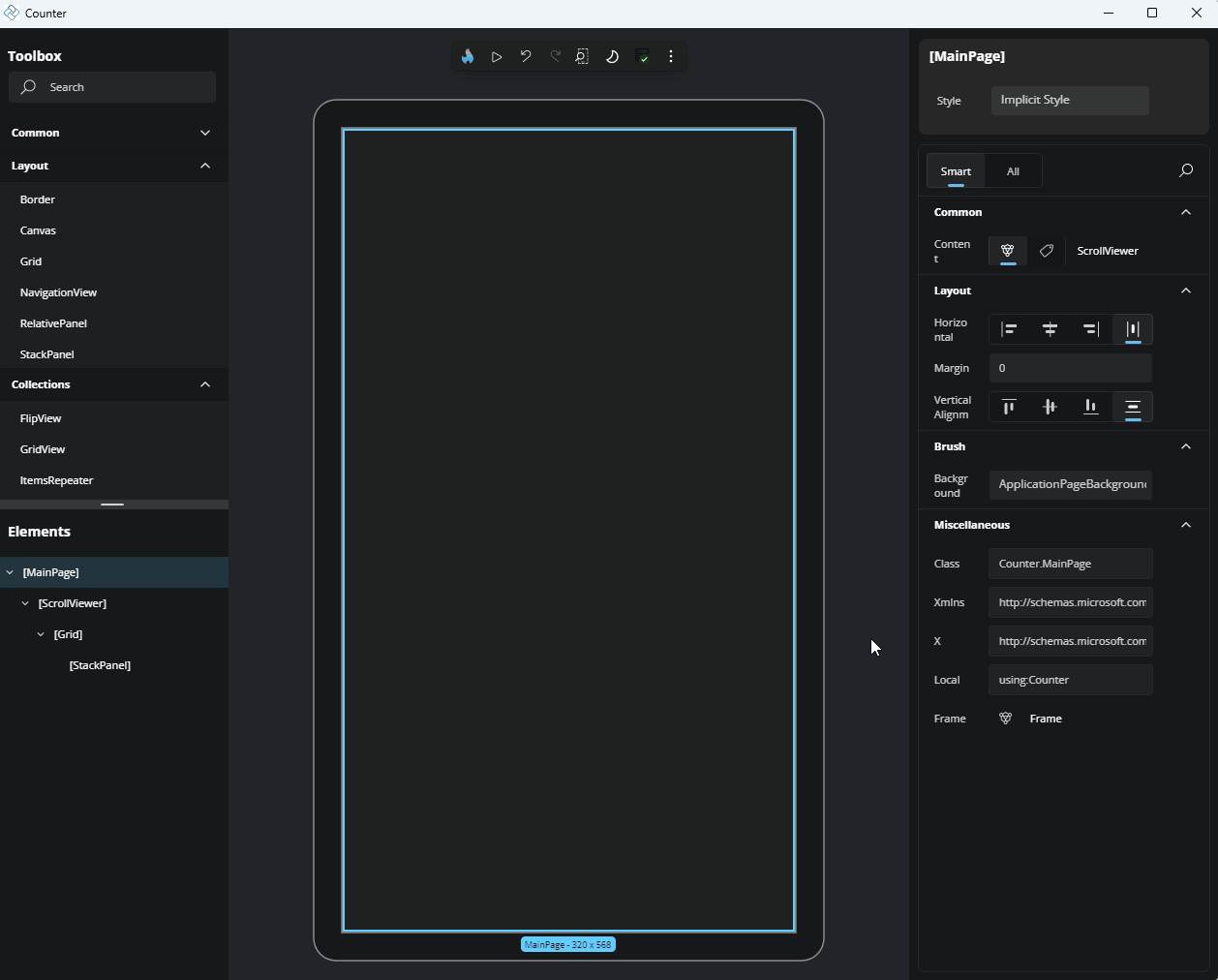

Now, let's edit a property of the StackPanel to align it vertically and horizontally to the center. Select the StackPanel from the Elements panel or the Canvas. In the Properties panel, on the right side of the app, find the VerticalAlignment property and set it to Center, then do the same for HorizontalAlignment.

Add an `Image` element

Next, add an Image element to the StackPanel. In the Toolbox panel, search for "Image". Once it appears in the results, drag it onto the StackPanel using either the Canvas or the Elements panel.

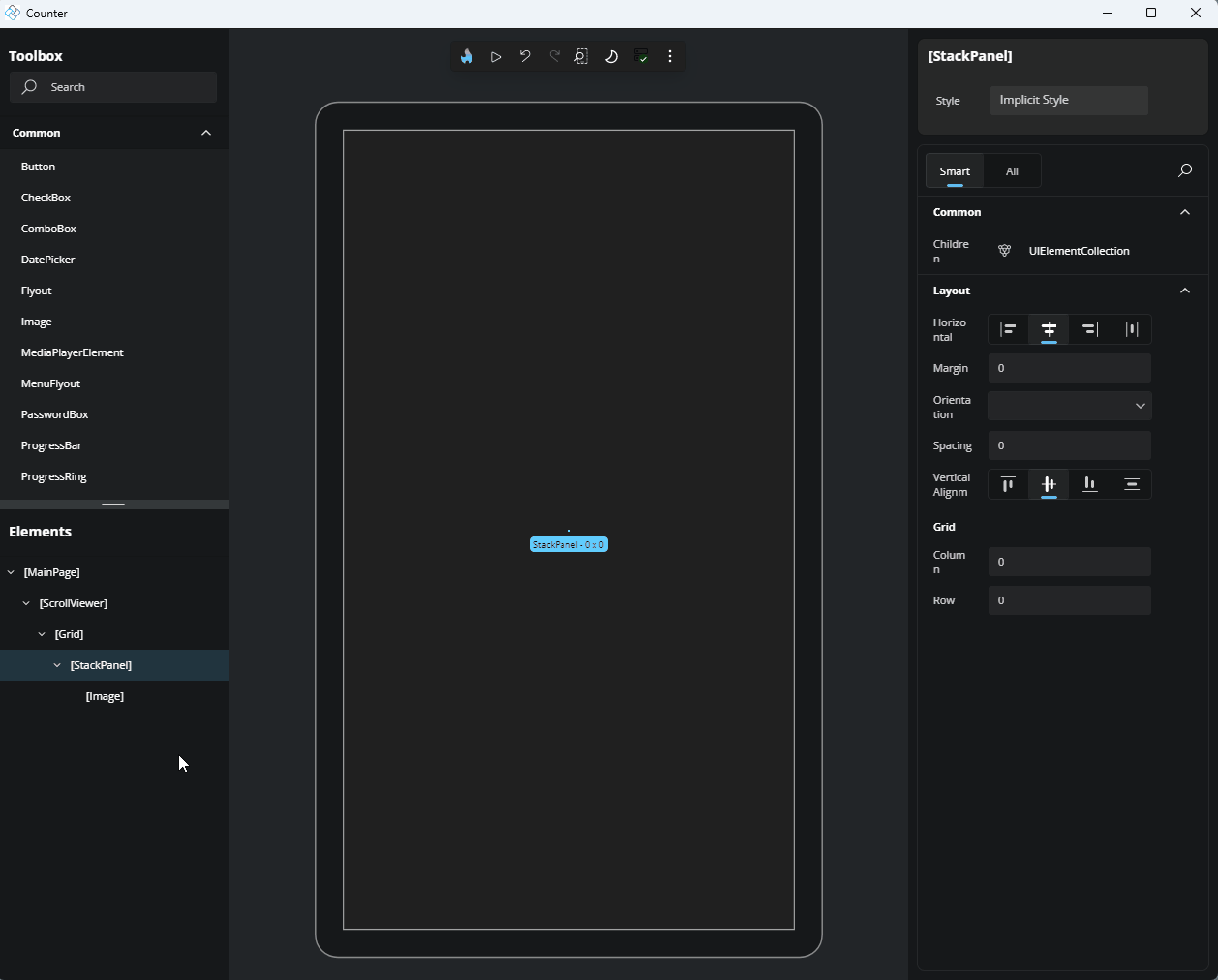

Now that the Image element is added, let's set the source for our Image element. In the Properties panel, locate the Source property. Start typing the name of the image we previously added, and the results should appear. Select Assets/logo.png.

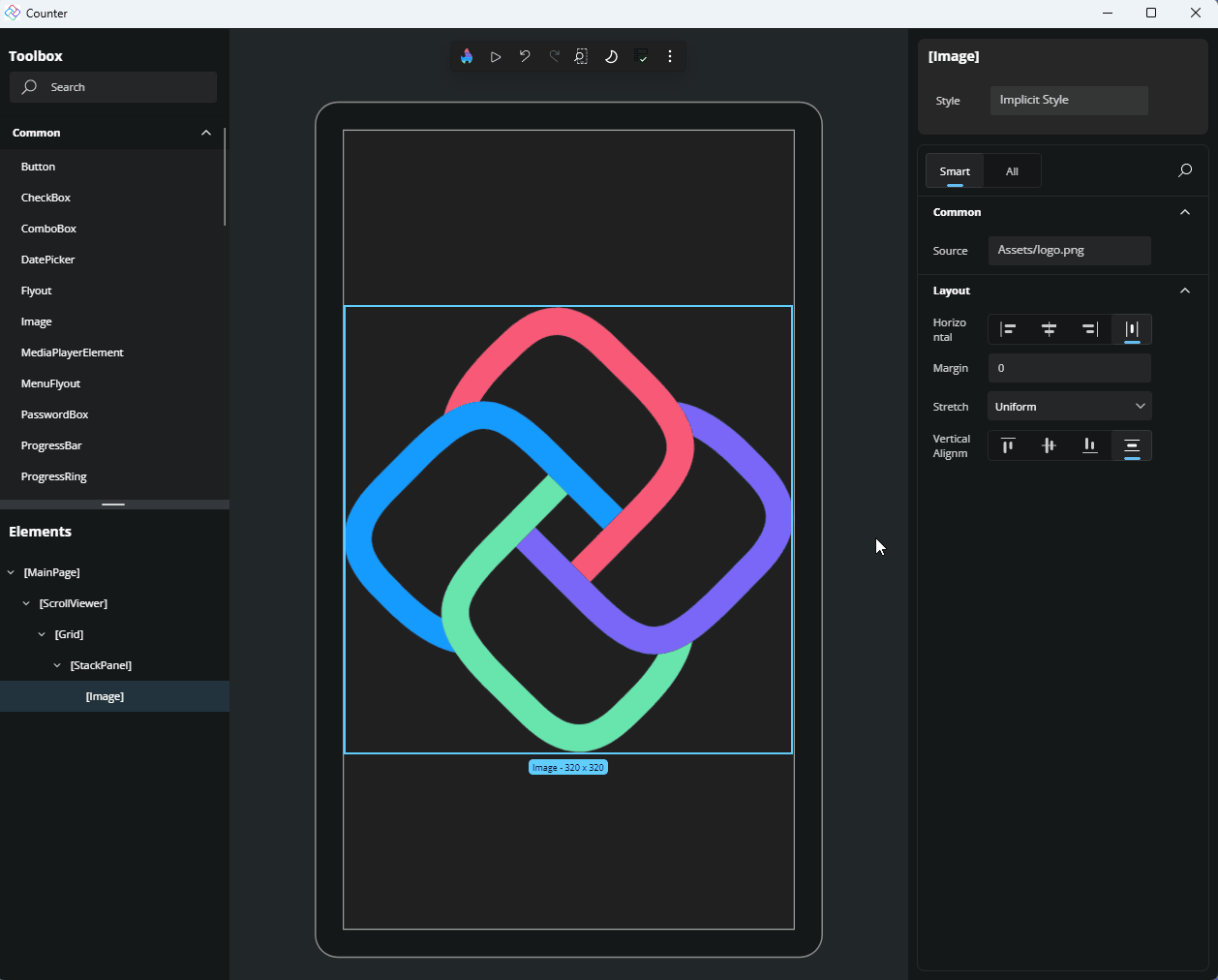

Now, let's edit some properties to enhance its appearance. In the Properties panel, use the search button to find properties. Search for "Width" and set its value to 150. Do the same for Height. Our Image element is now complete!

Add a `TextBox` element

The next step is to add a TextBox that will hold the increasing step value for our Counter app. In the Toolbox panel, search for "TextBox." Once it appears in the results, drag it onto the StackPanel, making sure to place it under the Image element.

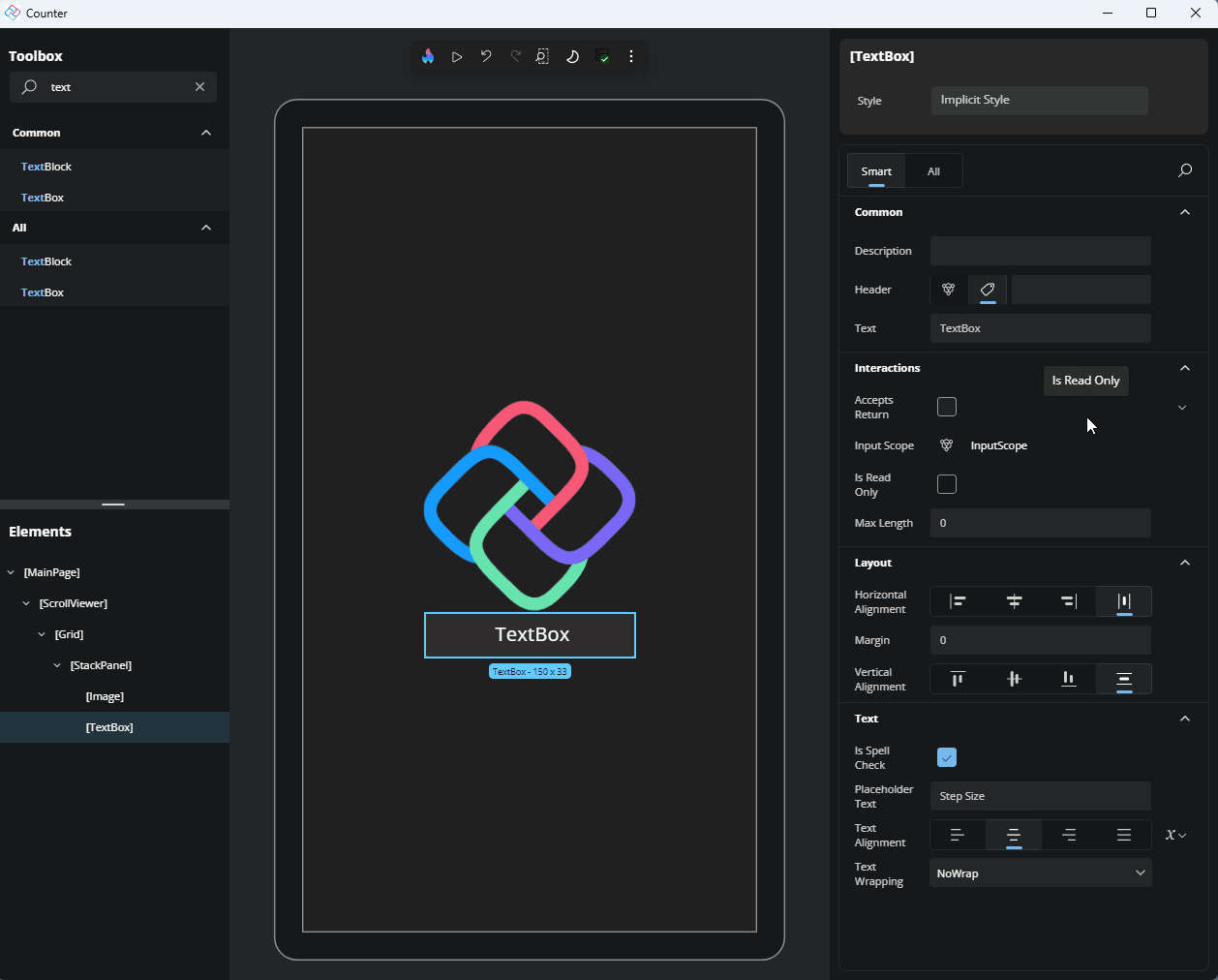

Now, let's set the TextBox properties. In the Properties panel, set the PlaceholderText to "Step Size" and set the TextAlignment to Center. Reset the Text property by clicking the Advanced button to open the Advanced Property flyout, followed by clicking the Reset button.

Add a `TextBlock` element

The next element to add is the TextBlock, which will display the current value of our Counter app. In the Toolbox panel, search for "TextBlock." Once it appears in the results, drag it onto the StackPanel, ensuring it is placed under the TextBox.
Let's edit the TextBlock properties. In the Properties panel, set the Text to "Counter: 1"; and, set the TextAlignment to Center.

Add a `Button` element

The final element is the Button that will increment the Count value. From the Toolbox panel, search for "Button" and once the result appears, drag it onto the StackPanel, making sure it is added under the TextBlock element.
Set the Button properties. In the Properties panel, set the Content to "Increment Counter by Step Size".

Note

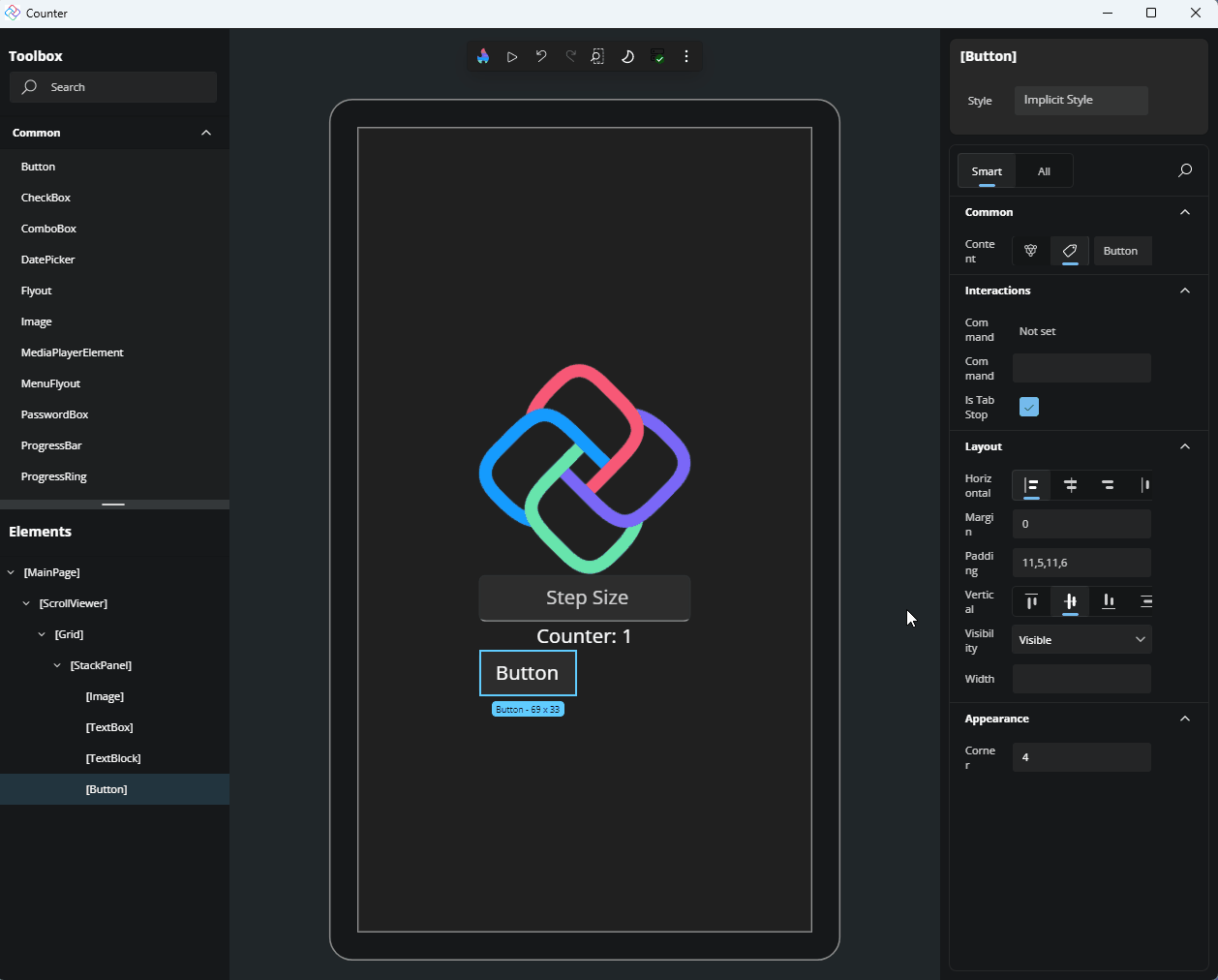

If there's insufficient room to edit the Content property you can resize the Properties panel by dragging the left edge of the Properties panel to the left.

Resize Properties panel

Multi-selection

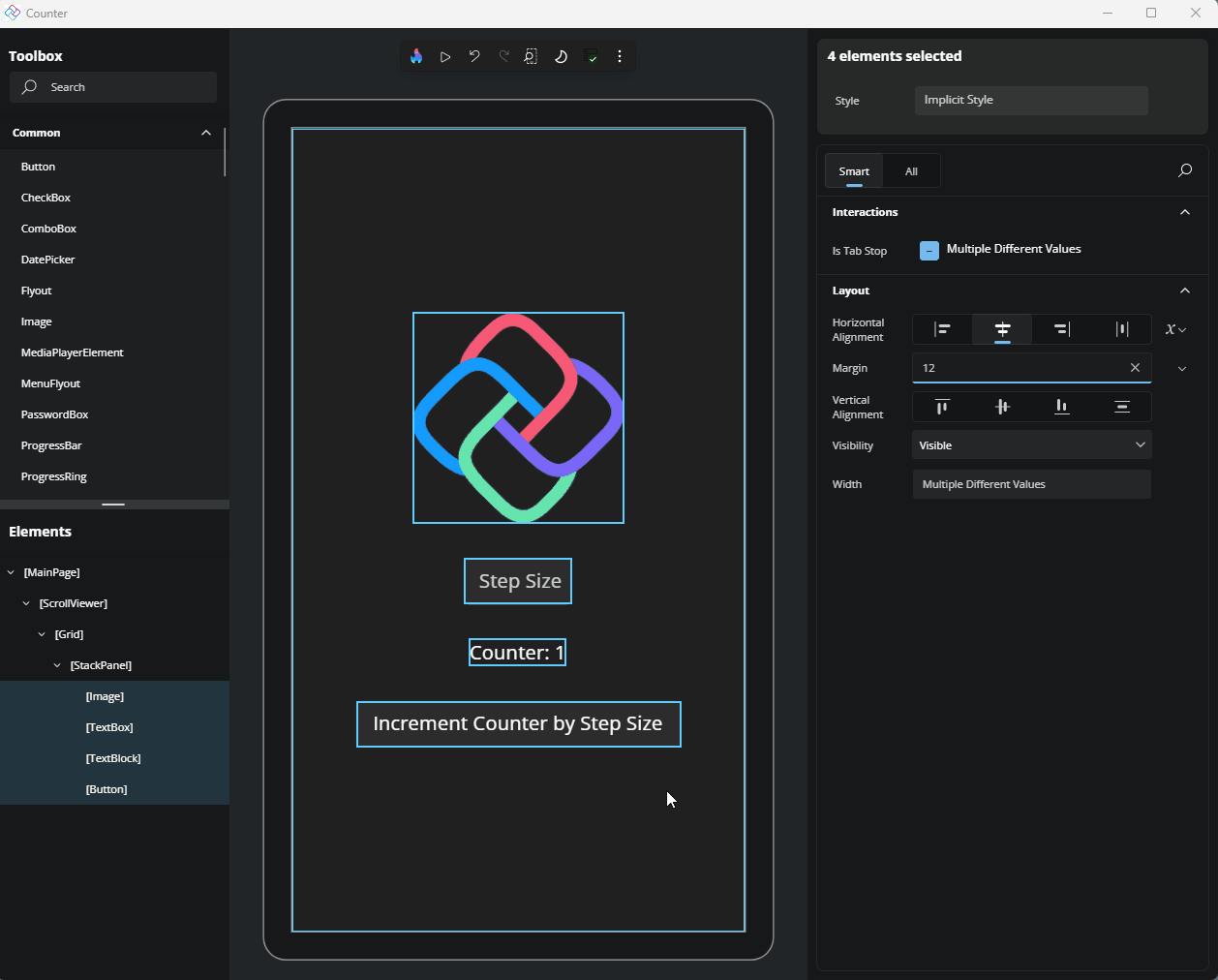

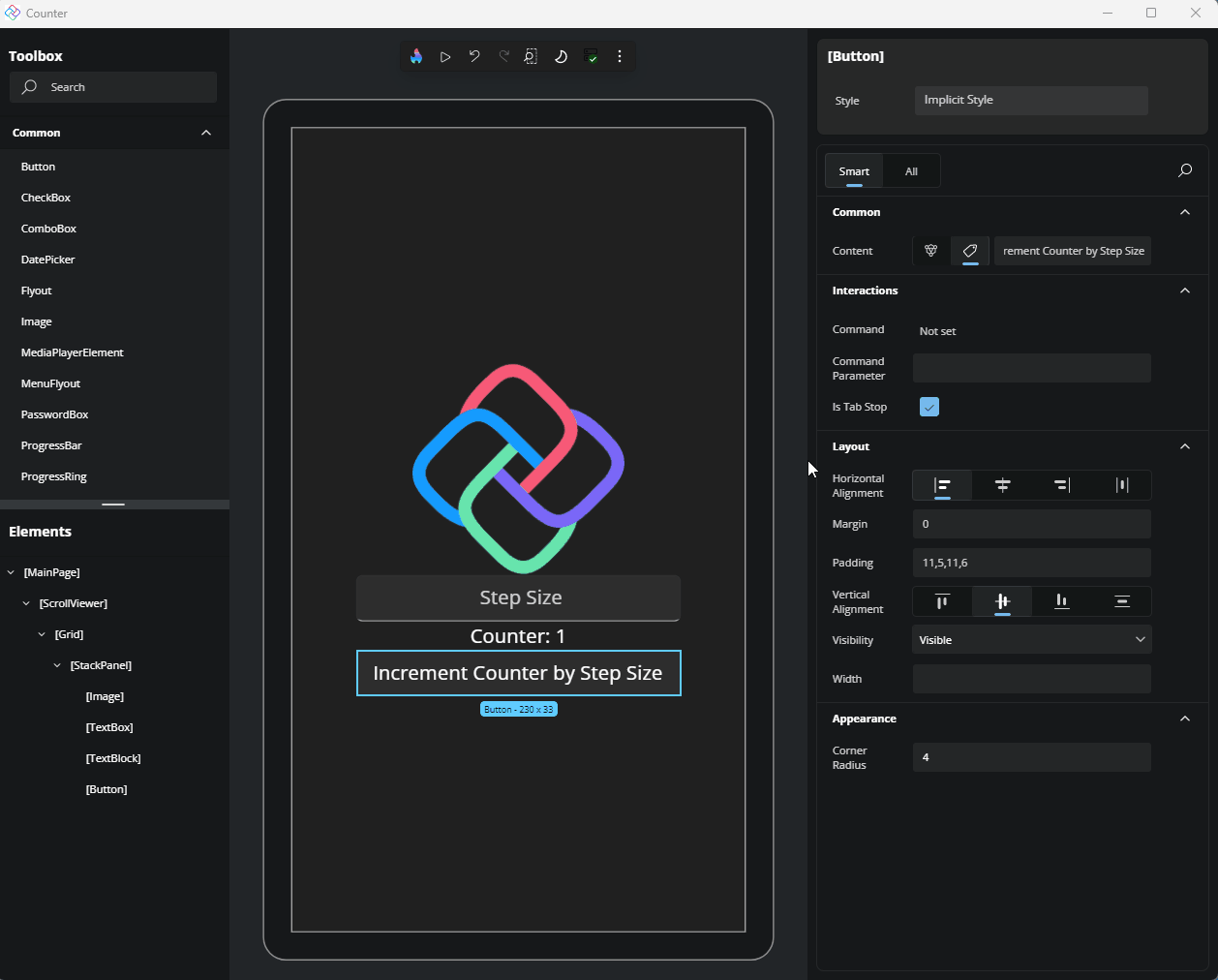

Hot Design allows you to select multiple elements and edit common properties simultaneously. Let's try it:

Hold the Ctrl key on your keyboard and click on the Image, the TextBox and the TextBlock (the Button should still be selected from the previous step) on the Canvas or in the Elements panel.
In the Properties panel, set HorizontalAlignment to Center and Margin to 12.

Style Picker

Hot Design allows you to apply existing styles to your elements for a polished appearance. Let's change the style of our Button:

Select the Button, either from the Elements panel or the Canvas.
At the top of the Properties panel, locate the Style Picker.
Choose ButtonRevealStyle to apply it.

MainModel and Data Binding

As part of creating the application, we selected MVUX as the presentation framework. This added a reference to MVUX which is responsible for managing our Models and generating the necessary bindings. Without closing the application, return to your IDE and add a new class named MainModel and paste the following code to the newly created class:

namespace Counter;

internal partial record Countable(int Count, int Step)
{
    public Countable Increment() => this with
    {
        Count = Count + Step
    };
}

internal partial record MainModel
{
    public IState<Countable> Countable => State.Value(this, () => new Countable(0, 1));
    public ValueTask IncrementCounter()
            => Countable.UpdateAsync(c => c?.Increment());
}

As the application uses MVUX, the MainModel class is used to generate a bindable ViewModel, MainViewModel. Modify MainPage.xaml.cs to make an instance of MainViewModel available to be data bound and connected to the UI. Add DataContext = new MainViewModel(); to MainPage.xaml.cs right after InitializeComponent();.

After making these changes in the IDE, save all files and return to Hot Design.

Note

VS Code and Rider will automatically trigger Hot Reload when the files are saved.

In Visual Studio, you can manually trigger Hot Reload by clicking the Hot Reload button on the Visual Studio top toolbar.

Set Binding

TextBox

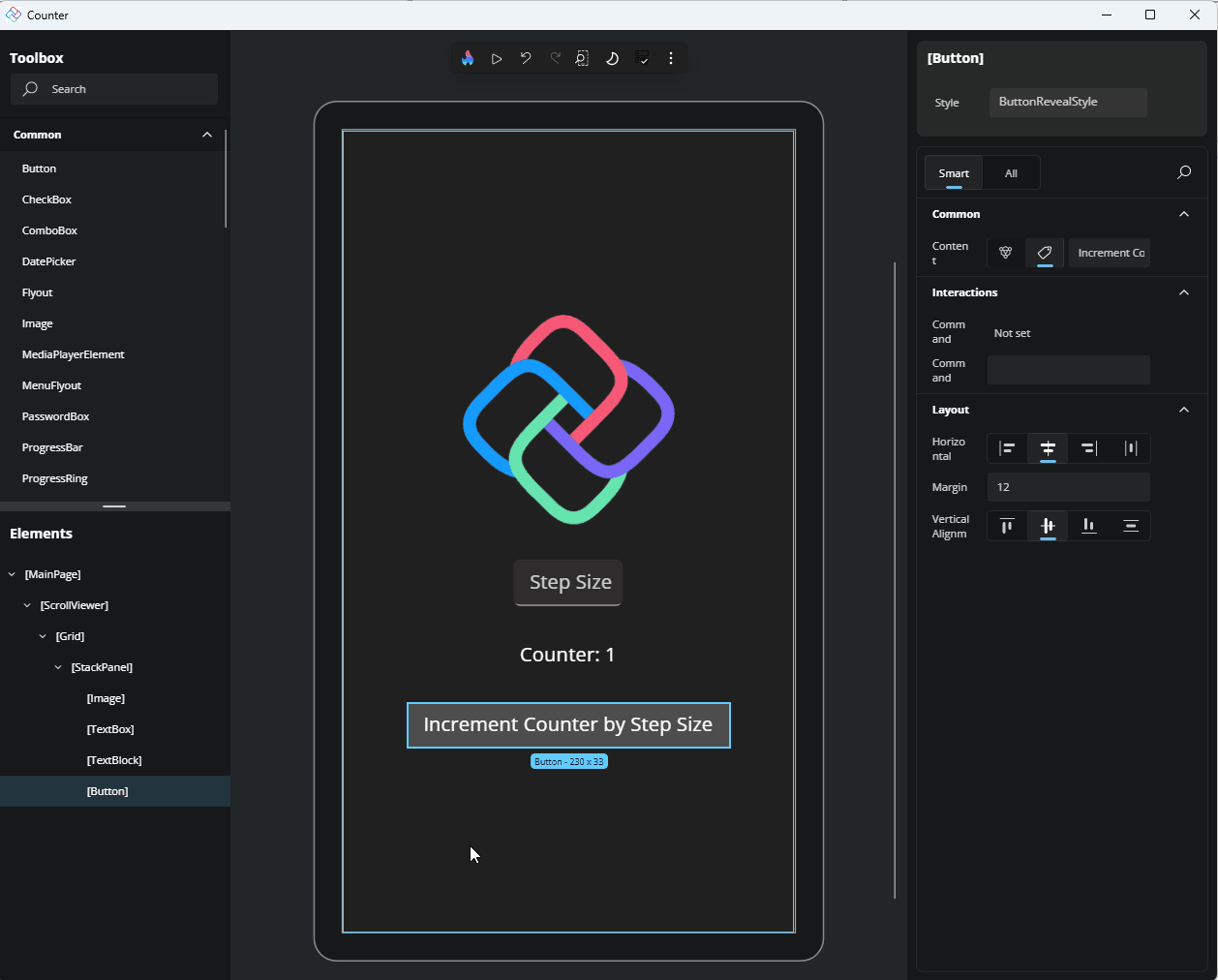

Now, we need to bind the TextBox's Text to the Countable.Step property of our ViewModel. In the Properties panel, locate the Text property. Click the Advanced button to the right of the TextBox to open the Advanced Property flyout. Select Binding. In the Path dropdown, locate the Countable property of our ViewModel, click the arrow to expand its properties, and select Step. Finally, from the Mode dropdown, select TwoWay.

TextBox

TextBlock

For the TextBlock, bind the Text property to Countable.Count, just as we did with the TextBox. For this step it is not necessary to set the Mode.

Button

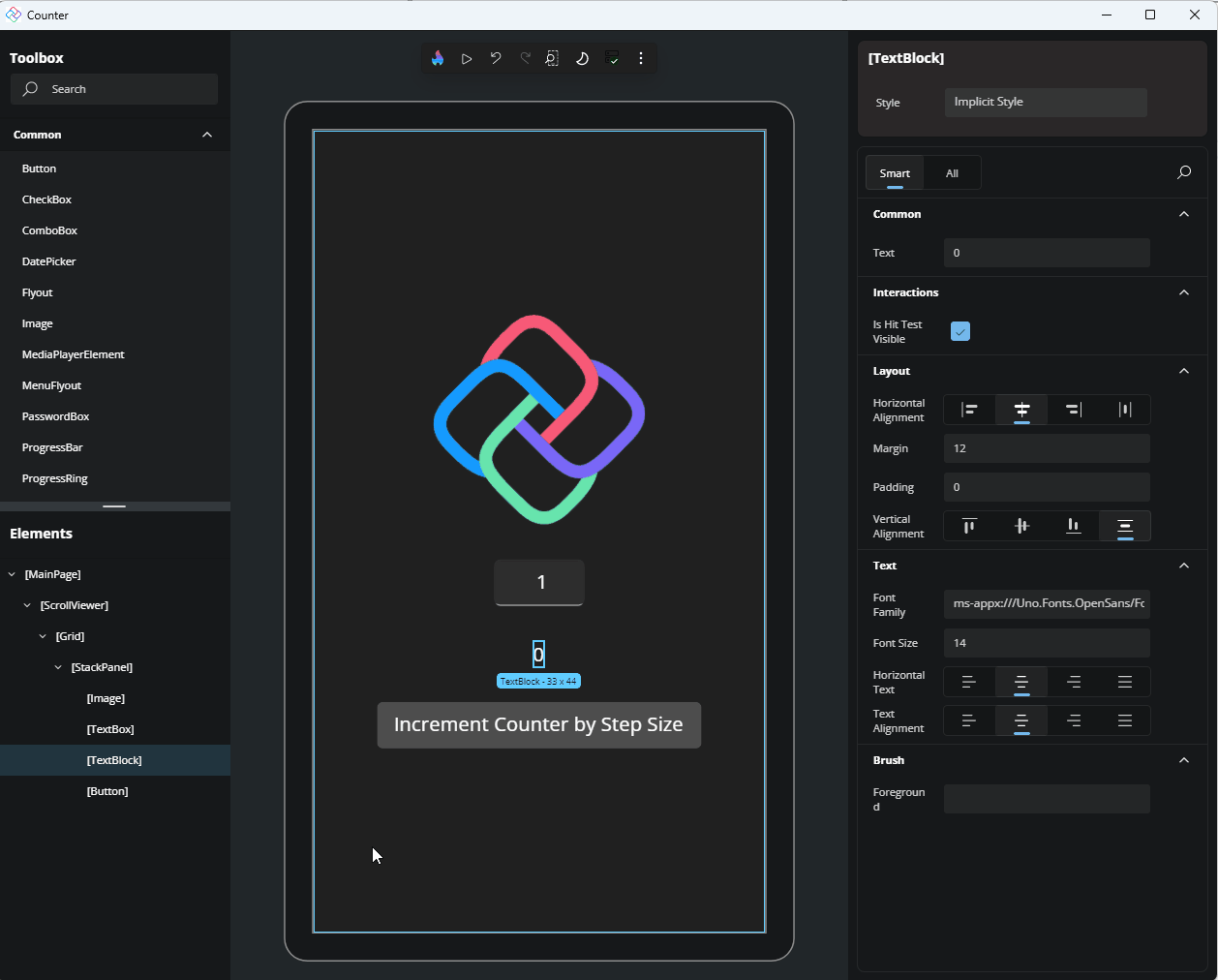

Finally, let's bind the Command to the IncrementCounter task of our ViewModel.

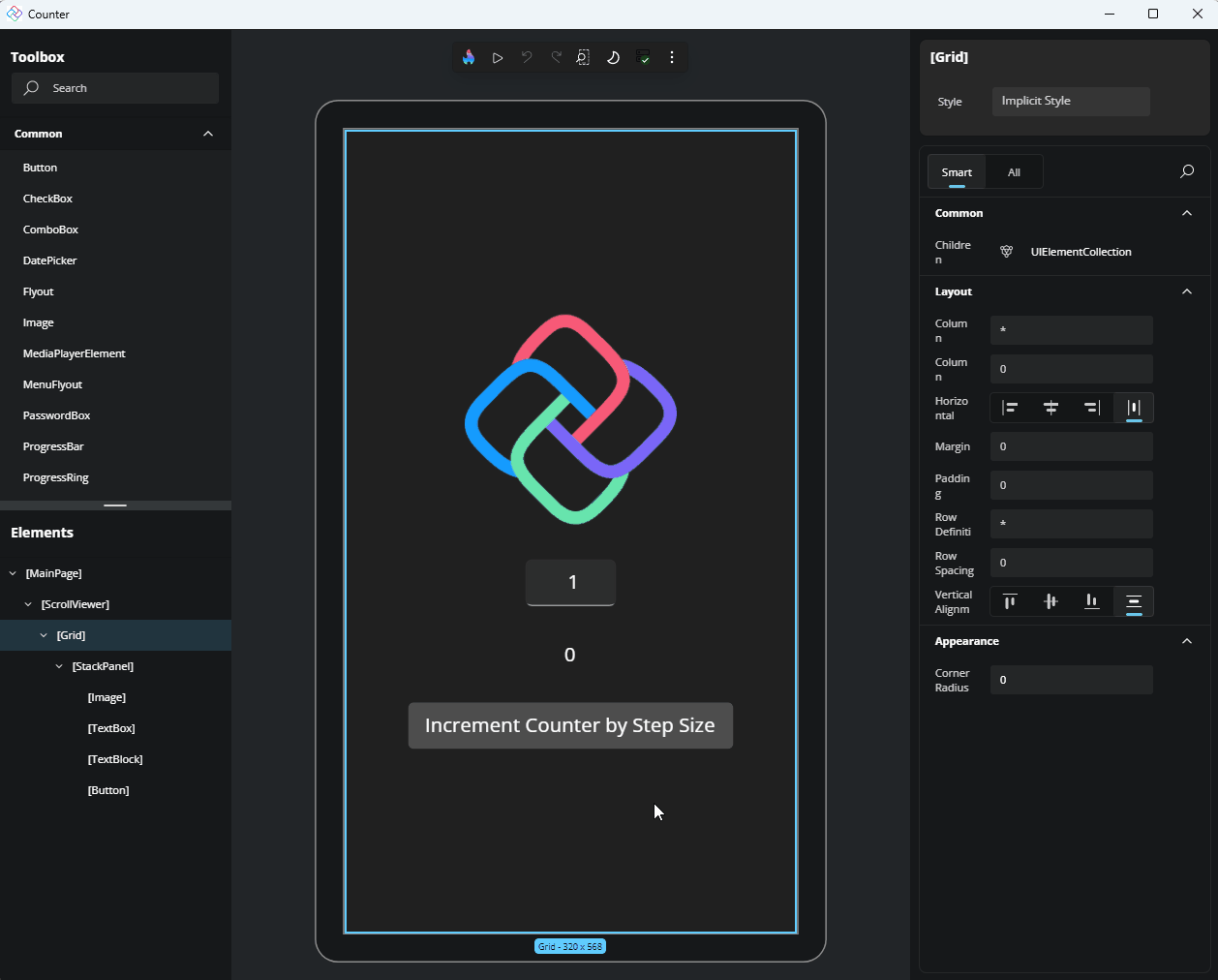

Wrap Up

At this point, you should have a working counter application. Click the Play button in the Toolbar, adjust the step size, and click the button to see the application in action.

The Play button lets you interact with the app directly within Hot Design, without needing to leave the editor. Once you're done interacting with the application, you can click the Pause button to return to designing your application. If you wish to leave Hot Design and return to the running application, you can click the Flame button in the Toolbar.
